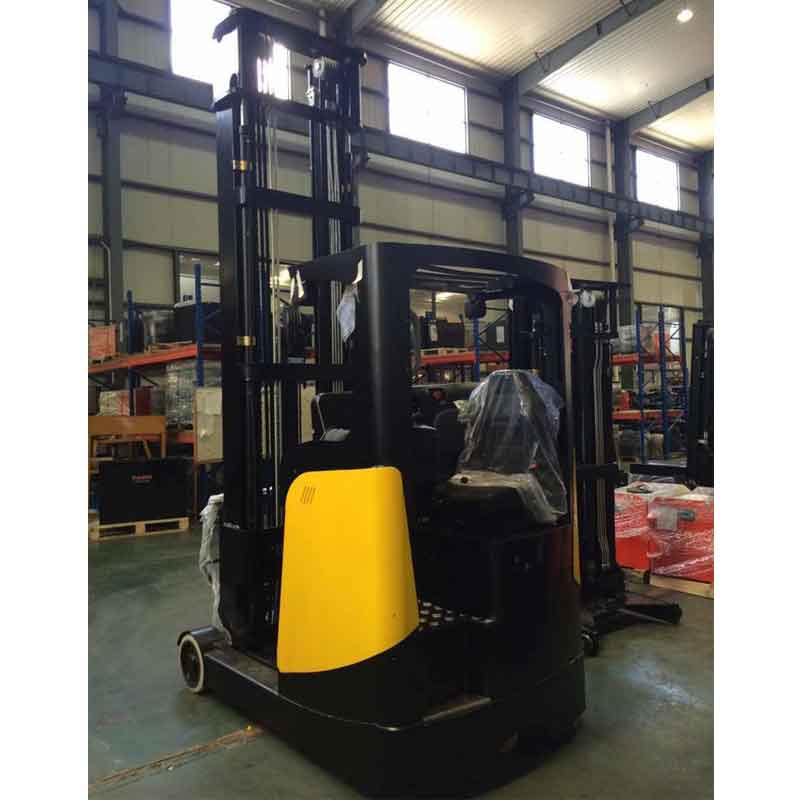

Sit-Down Reach Truck 1.6-2.0T

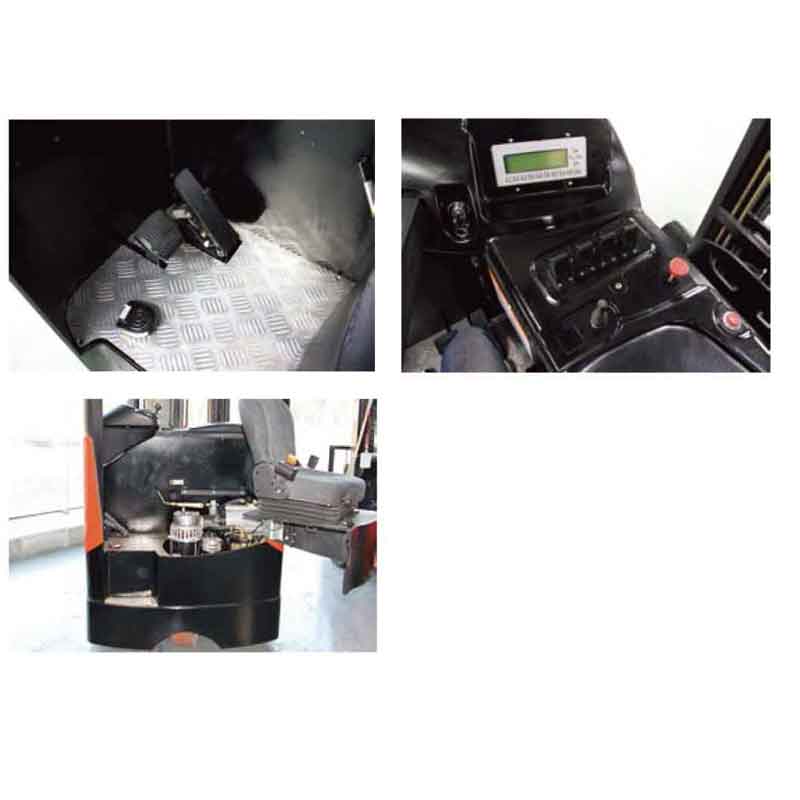

Main Features

• Up to 11M stacking height makes it possible to carry out order picking at high position with great intensity;
• International quality components;
• Ergonomics design, comfortable and efficient.

Rated Capacities Graph

Technical Data

Distinguishing Mark
Manufacturer			Aceally
Model designation			CQD16F	CQD16N	CQD16R	CQD16V	CAD20R	CAD20V
Drive unit			Battery
Operator type			Seated
Rated capactiy	Q	t	1.6				2
Load center distance	c	mm	600
Wheelbase	y	mm	1454		1454①		1524①
Weight
Service weight(include battery)		kg	3070②		2940②		2945②
Axle loading, fork advanced, unladen driving side/loading side		kg	1700/1310
Axle loading, fork retracted, unladen driving side/loading side		kg	1990/1020
Axle loading, fork advanced, laden driving side/loading side		kg	820/3820
Axle loading, fork retracted, laden driving side/loading side		kg	1640/3000
Types,Chassis
Tyre type driving wheels/loading wheels			Polyurethane
tyre size, driving wheels(diameterxwidth)		mm	343x140
Tyre size, loading wheels(diameterxwidth)		mm	310x96		310x118ⓐ
Tyre size, caster wheels(diameterxwidth)		mm	/		/ⓑ
Wheels, number driving, caster/loading(x=drive wheels)			1x,2		1x,2ⓑ
Track width, front, driving wheels	b10	mm	0		0
Track width, rear, loading wheels	b11	mm	1106		1148ⓐ
Dimensions
Tilt of mast/fork carriage forward/backward	α/β	°	2/4
Height, mast lowered	h1	mm	2130③
Free lift(load backrest)	h2	mm	120③
Lift height	h3	mm	3000③
Height, mast extended	h4	mm	4065③
Height of overhead guard(cabin)	h6	mm	2210
Seat height/standing height	h7	mm	1200
Height of wheel arms	h8(mm)	mm	330
Overall length(minimum)	l1	mm	2502①		2470①
Length to face of forks	l2	mm	1432①		1400①
Overall width	b1/b2	mm	1192/1202		1260/1270ⓐ
Fork dimensions	s/e/l	mm	40x100x1070				40x120x1070
Fork carriage class/type A,B			A
Fork carriage width	b3	mm	990
Distance between fork-arms	b5	mm	200/770				240/740
Distance between wheel arms/loading surfaces	b4	mm	899		915
Reach distance	l4	mm	475①		520①
Ground clearance, laden, below mast	m1	mm	70
The minimum ground clearance of frame	m2	mm	70 @
Aisle width for pallets 1000x1200 crossways	Ast	mm	2850①		2827①		2842①
Aisle width for pallets 800x1200 lenthways	Ast	mm	2918①		2891①		2893①
Turning radius	Wa	mm	1705		1705①		1770①
Length across wheel arms(exclusive fork)	l7	mm	1865		1865①		1935①
Performance Data
Travel speed, laden/unladen		km/h	10/11				9/9.5
Lifting speed, laden/unladen		m/s	0.34/0.45				0.28/0.42
Loweing speed, laden/unladen		m/s	0.31/0.33				0.3/0.33
Reaching speed, laden/unladen		m/s	0.9/0.9
Max.gradeability, laden/unladen		%	10/15
Service brake type			Electromagnetic
Park brake type			Electromagnetic
Electric-engine
Drive motor rating S2 60min		kW	6.4
Lift motor rating at S3 15%		kW	11		11		13
The maximum allowed size battery		mm	1120x387x778		1220x355x778		1220x427x778
Battery boltage/nominal capacity K5		V/AH	48/500④
Battery weight		kg	820④		925④		925④
Addition Data
Type of drive unit			AC
Steering type			Electronic
Sound pressure level at the driver's ear		dB(A)	75

① Dimensions(mm)

② Service Weight (include battery)

2. The parameters are subject to change without notice.

③ Mast

CQD16N 2-stage mast

CQD16N 3-stage mast

CQD20 3-stage mast(≥10000mm)

CQD16-20 2-stage mast

CQD16-20 3-stage mast(≤7500mm)

CQD16-20 3-stage mast(8000≤h3≤9500mm)

④ Battery

1.The parameters in the table are of the standard model. For more information please contact us.

2. The parameters are subject to change without notice.
