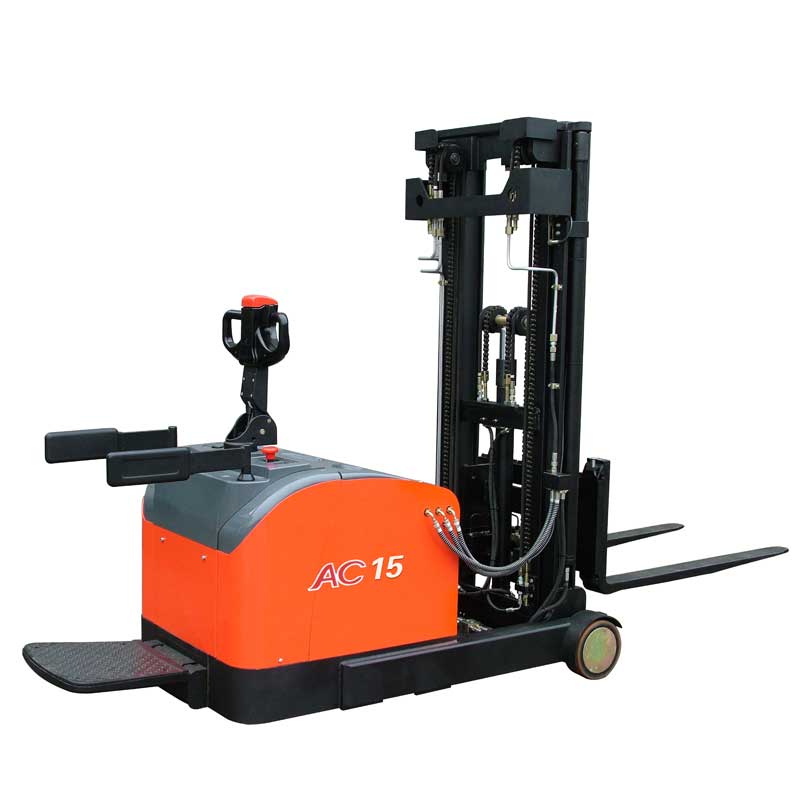

1.2/1.5 Ton Counterbalanced Reach Stacker ELES-12R/15R

AC｜EPS

Down mode at 3 speeds

Standard fork tilt device

ADD TO FAVORITES INQUIRY NOW

DESCRIPTION

FAQ

Fork over typed stacker
Type	Lift height( mm)	Mast tyep	Outside width between legs(mm)	Inside width between legs(mm)
ELES-12R	1400/2000/2500/3000/3300/3600/4000	Standard 2-STAGE	200-755	0-555
ELES-15R	3700/3900/4200/4500/5000	Full free 3-STAGE	200-755	0-555

Feature
Model		ELES-12R	ELES-15R
Configuration No.
Type		Reach
Mast type		Standard 2-stage	Full free 3-stage
Load capacity	kg	1200	1500
Load center	mm	500
Wheel base	mm	1332
Operating type		Stand on
Wheels
Wheels type		PU
Wheel quantity driving wheel/ balance wheel/ bearing wheel		1/0/2
Dimension
Reach distance		0-425
Standard lift height		1400/2000/2500/3000/3300/3600/4000	3700/3900/4200/4500/5000
Max. Extend height		2235/2835/3335/3835/4135/4435/4835	4580/4780/5080/5380/5880
Mast Lowered height	mm	1490/1790/2040/2290/2440/2590/2790	1870/1940/2040/2140/2295
Lowered fork height	mm	55
Fork size (length/width/thickness)	mm	1070/100/40
Overall length	mm	2440/2896
Overall width	mm	1083
Overall width between forks	mm	200-755
Tilt of fork(F/B)	mm	3/5
Min. Turning radius	mm	1596/2040
Min. Aisle width for pallets 800x1200	mm	1620/3050
Min. Aisle width for pallest 1000x1200	mm	2645/3075
Min. Ground clearance	mm	60
Performance
Travel speed, laden/ unladed	km/h	5/5.5
Lift speed, laden/ unladed	mm/s	130/180
Lowering speed, laden/ unladed	mm/s	100/180
Gradeability, laden/ unladed	%	3/5
Electrical configuration
Drive motor/ lift motor/ steering motor	kW	AC 1.5/DC 3/DC 0.15
Battery voltage	V	24
Battery capacity	Ah	280
Brake		Electromagnetic/Regenerative
Controller		CURTIS
Weight
Battery weight	kg	235
Service weight with battery	kg	2100	2200

*Details of specifications and equipment are based on information available at time of printing and may change without notice.

Do you offer customized products?

we do custom products and projects.

If you are unable to findyour exact product within our wide variety please call or sales team to see ifthey are able to source the product you require. We also have a team whomanufacturer.
I don' have drawing or picture available for the custom products, could you design it for me?

Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environmen.
